| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE / RoHS / SGS / ISO9001:2015 |
| Model Number: | RM-KE-AF1C-P15KS67 |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | PE bag & carton |
| Delivery Time: | 5-8 working days |
| Supply Ability: | 5000 Piece/Pieces per Week |
| Prct Descreption: | K/KE Cable Receptacle | Shell Size: | 1031/AF (102, 103 104 Series Available) |
|---|---|---|---|
| Keying Code: | 1 (2, 3 Are Available) | Contact No: | 15 Pins (2, 3, 4, 7 9, 10 Pins Are Available) |
| Insulator: | PPS | Material: | Brass |
| Color: | Natural Chrome Plated | Contact Material: | Brass With Gold Plated |
| IP Rating: | IP68 | Manufacturer: | Yes |
| OEM & ODM: | Yes | Export Port: | Shenzhen |
| Highlight: | waterproof electrical connectors,waterproof cable connector |
||

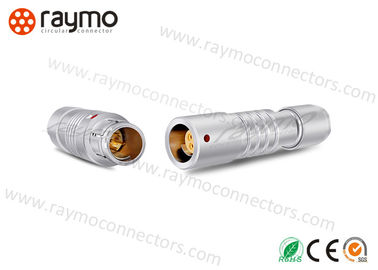

K/KE free cable mount receptacle
P/N: RM-KE-AF1C-P15KS67
Description: KE 1031/AF series cable receptacle, keying code 1, 15pin female solder contacts, outer shell in natural chrome-plated brass, PPS insulator, 67 cable collet for 6.2-6.7mm cable, standard round nut.
| Mechanical and Climatical | |||
| Endurance | >5000cycles (IEC60512-5test9a) | Temperature range | -55°C, +250°C |
| Resistance to vibration | 10-2000Hz,15g (IEC 60512-4 test 6d) | Humidity | Up to 95% at 60°C |
| Shock resistance | 100g, 6ms (IEC 60512-4 test 6c) | Climatical category | 55/175/21 (IEC 60068-1) |
| Salt spray corrosion test | >96h (IEC 60512-6 test 11f) | Protection index (mated) | IP68 (IEC 60529) |
| Electrical Characteristics | |||
|
Shielding efficiency (at 10 MHZ) |
>95 dB (IEC 60619-1-3) |
Shielding (at 1 GHz) |
>80 dB (IEC 60619-1-3) |
– Easy mating, can be blind-mated
– Increased safety and user friendliness
– Convenient grip even with gloves
– Increased equipment life span
– Robust and shock resistant designs
– Compact and lightweight construction
– High pin density and hybrid contacts
– High performance connectors
– Sealed up to IP68 and corrosion resistant
– Sterilizable
Photo & Demensions
RAYMO's high quality connectors are found in a variety of challenging applications and environments including: Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor, Sensor Systems Instrumentation, Analysis Application.
PE bag & Carton
Delivery Time
1~10pcs: 3~5 working days
11~100pcs: 3~5 working days
101~500pcs: 3~5 working days
501~1000pcs: 3~5 working days
RAYMO connectors is a SGS audited manufacturer for various connectors and cable assemblies with below features:
1. High quality connectors & cable assemblies, competitive price, fast delivery ( 5-7 working days);
2. CE, RoHS, SGS, ISO9001:2015 certificates;
3. 100% compatible with the original connectors;
4. Main market: North America, Europe, Asia, North Africa, Oceania;
5. OEM & ODM are welcome;
6. No MOQ limited;
7. Free sample available;
8. Fast respond: with 24 hours;
9. Good after-sale service;
Our Service
1. High Quality: CNC machine, professional engineer, skilful worker, responsible QC ensure our high quality prcts;
2. OEM & ODM: OEM & ODM services are welcome;
3. Sample policy: Free sample & sample order are accepted;
4. Fast delivery: 3~5 working days after receiving payment for normal connectors;
5. Fast Respond: within 24 hours for your inquiry and any other questions;
6. After-sale Service: Follow up your shipment. Provide professional solutions for your questions.
1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing circular push-pull connectors and cable assembly since 2010. We are SGS audited manufacturer, passed ISO9001:2015 Quality management system, and worked on www.alibaba.com as a golden supplier more than 4 years. All the prcts meet CE & ROHS standards.
2. What is the MOQ?
Raymo: No MOQ limited, depend on customer real needs.
3. Free sample:
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: 3-5 working days for samples, 5-7 working days for mass prction.
5.What is your payment terms?
Raymo: 100% T/T in advance when customer place an order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating, our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
