| Place of Origin: | SHENZHEN,CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE/ROHS/SGS/ISO:9001-2015 |
| Model Number: | RM-EEG.2KC.319.KS |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Plastic Bag & Carton |
| Delivery Time: | 5-7working days |
| Payment Terms: | T/T, Western Union, D/A, D/P,L/C, MoneyGram |
| Supply Ability: | 5000Pieces/ Week |
| Prct Name: | IP68 Waterproof Push Pull Connector | Model: | EGG Panle Mount Socket |
|---|---|---|---|
| Contact No.: | 2-32 Pins | Shell Size: | 0K,1K,2K,3K |
| Shell Color: | Natural Or Black Shell | Gender: | Male, Female |
| Insulator: | PPS, PEEK | Contact Type: | Solder/PCB/90° PCB Contacts |
| Cable Assembled Or Not: | Yes | IP Ranking: | IP68 |
| Highlight: | waterproof wire connectors,waterproof electrical connectors |
||
Part No.: |
EGG.2K.319.CLL/ RM-EEG-2KC-319KS |
Prct Description: |

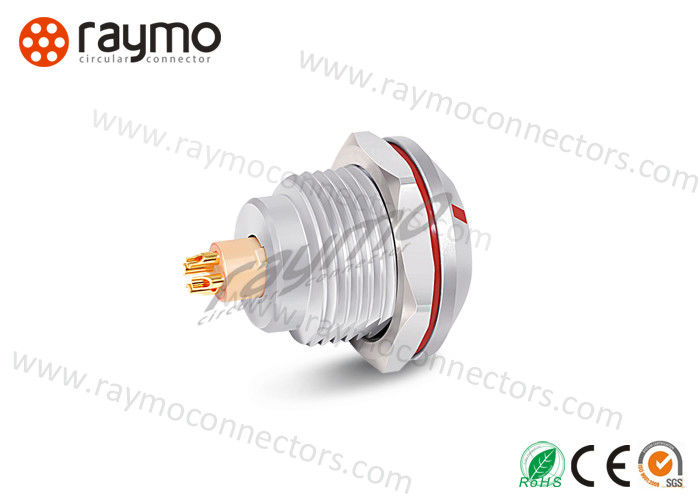

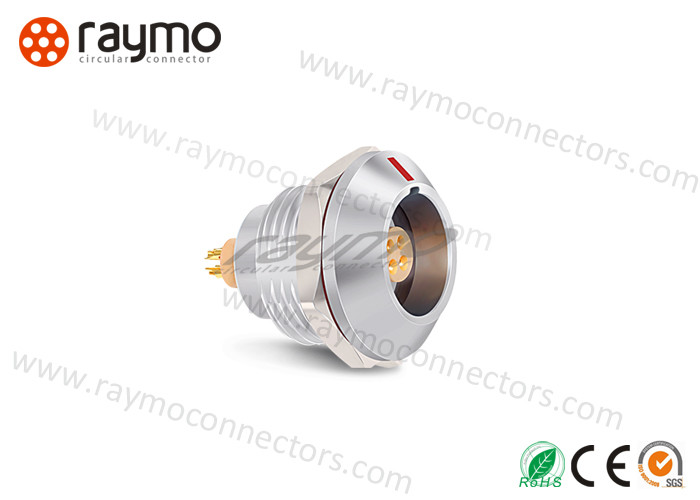

2K size connector, EGG panel mount socket, 19pin female contact, natural chrome plated shell in brass |

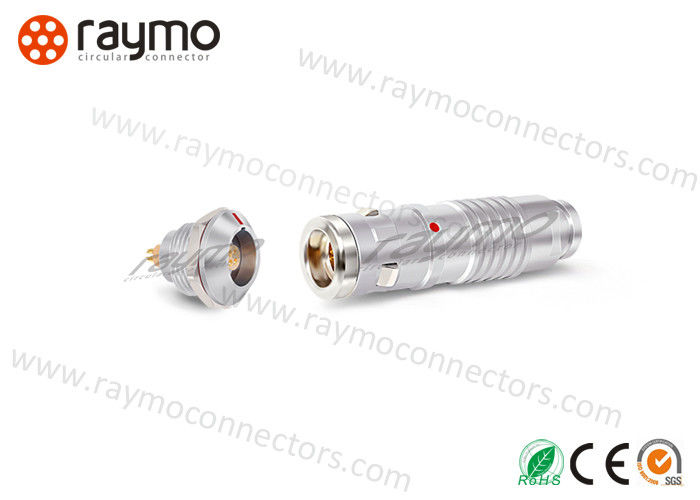

K series Push pull locking metal connector, cable to cable connector, free socket, inline connector
| Main Futures | |
| 1 | Waterproof Secure high performance push-pull Self-locking system |
| 2 | 100% compatible with original Lemo K series connector |
| 3 | can plated with white or black chrome |
| 4 | 2-32pin available |
| 5 | Available solder and PCB or right angle PCB contact. |
| 6 | 360° EMC shield |
| 7 | Certificate:ISO:9001-2015, CE ,RoHS2.0, SGS, Reach |
| Technical Characteristics | |||
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | Brass with chrome plated | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144hr |
| Climatical Category | 55/175/21 | Shielding (min) | > 95dB [ at 10 MHz], > 80 dB [ at 1 GHz] |
| IP Rating | IP 68 | Endurance(shell) | ≥5000 mating cycles |
| Shell size | Contacts no. ( Both with Solder & PCB type ) | |||||||||||
| 0K | 2 | 3 | 4 | 5 | 6 | 7 | 9 | |||||
| 1K | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | |
| 2K | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 |
| 3K | 3 | 4 | 6 | 8 | 9 | 10 | 12 | 14 | 14 | 16 | 18 | 21 |
| 26 | 30 | 32 | ||||||||||
